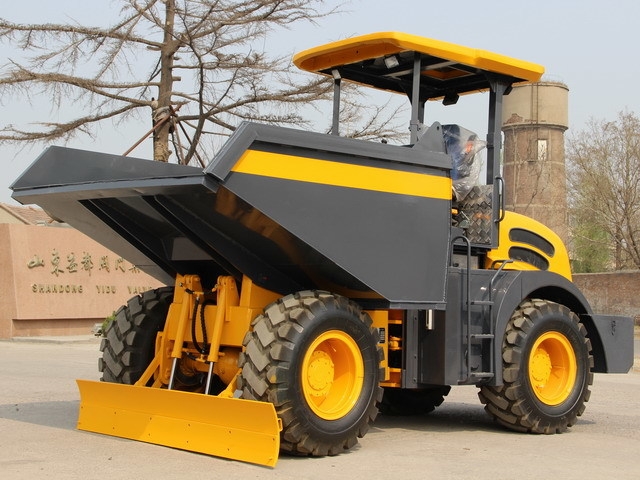

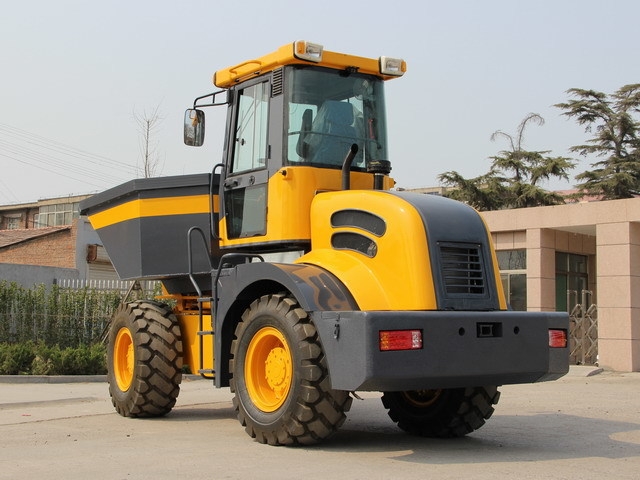

Articulated dumper 6.0T 4WD Articulated Dumper DP60 6.0T 4WD Articulated Dumper DP60 Qingdao Promising

6.0T 4WD Articulated Dumper Application: A dumper is a vehicle designed for carrying bulk material, often on building sites. Our compact dumpers are designed for any application from conventional building construction and landscaping to tunnel construction and demolition work. This three-way dumper provides an ideal solution as multi-function dumper when considerable manoeuvrability is required. They are ideal vehicles for transport and distribution of materials at building sites and for road works. Feature: 1. Articulated joint 2. Excellent product quality 3. Durable and easy to service 4. Impressive turning radius for precision and efficiency 5. User-friendliness combined with excellent driver comfort 6. Power Swivel skips enable effective placement of load either side 7. Available with closed cab and heating Technical Specifications: Model: DP60 Payload: 6000kg Operating Weight: 5950kg Bucket Capacity: 3CBM Max. Tractive Force: >=55KN Max. Breakout Force: >=46KN Max. Gradeability: 30Deg. Overall Dimension (L x W x H): 5000x2200x3100mm Min. Turning Radius: 5750mm Engine Model: YUNNEI YN38 Engine Type: Four-cylinder, In-line, Water-cooled, 4-stroke Diesel Engine No. of Cylinder-bore/Stroke of Engine: 4 - 108x120mm Engine Power: 60kW/2400rpm Max. Torque of Engine: 270N.m Min. Fuel Consumption Ratio: <=243g/kw.h Torque Converter: YJ-280A Hydraulic Torque Converter Gearbox Mode: Countershaft Power-shift Gear Shift: 2 Forward, 2 Reverse Max. Speed: 24km/h Main Reducing Mode: Circular Arc Bevel Gear, Single Stage Decelerating Mode: Single Stage Planetary Type Wheel Base: 2530mm Wheel Tread: 1600mm Min. Ground Clearance: 310mm System Working Pressure: 16Mpa Fuel Tank Capacity: 80L Service Brake: Foot Pedal Vacuum Booster, Air Over Hydraulic Caliper Disc Brake on 4 Wheels Parking Brake: Hand Lever Flexible Shaft Controlled Externally Contracting Drum Brake Tyre Type Specification: 16/70-20-16PR Front Tyre Pressure: 0.22Mpa Rear Tyre Pressure: 0.18Mpa Optional Parts & Functions: Hydraulic Joystick, 180 degree Rotating Dump Bucket, Bulldozing Blade, Self-Loading Bucket and Canopy. Note: 1. All photos are for reference only. Machines shown may include optional parts. 2. Available optional parts include Hydraulic Joystick, 180 degree Rotating Dump Bucket, Bulldozing Blade, Self-Loading Bucket and Enclosed Cabin. 3. All specifications and design characteristics are subject to change without prior notice. 6.0T Articulated Wheel Dumper, 6.0T Dumper, 6.0T Mini Dumper, 6.0T wheeled dumper, 6 Ton articulated dumper, 6Ton 4-wheel dumper, 6T 4WD articulated dumper, 6000kg capacity wheel dumper, 6000kg site dumper, 6000kg capacity three-way dumper, 6.0 Ton mini dumper, 6.0 ton small dumper, 6.0T Articulated Wheel Dumper from China, 6.0T Dumper from China, 6.0T Mini Dumper from China, 6.0T wheeled dumper from China, 6 Ton articulated dumper from China, 6Ton 4-wheel dumper from China, 6T 4WD articulated dumper from China, 6000kg capacity wheel dumper from China, 6000kg site dumper from China, 6000kg capacity three-way dumper from China, 6.0 Ton mini dumper from China, 6.0 ton small dumper from China, China made 6.0T Articulated Wheel Dumper, China made 6.0T Dumper, China made 6.0T Mini Dumper, China made 6.0T wheeled dumper, China made 6 Ton articulated dumper, China made 6Ton 4-wheel dumper, China made 6T 4WD articulated dumper, China made 6000kg capacity wheel dumper, China made 6000kg site dumper, China made 6000kg capacity three-way dumper, China made 6.0 Ton mini dumper, China made 6.0 ton small dumper, China brand 6.0T Articulated Wheel Dumper, China brand 6.0T Dumper, China brand 6.0T Mini Dumper, China brand 6.0T wheeled dumper, China brand 6 Ton articulated dumper, China brand 6Ton 4-wheel dumper, China brand 6T 4WD articulated dumper, China brand 6000kg capacity wheel dumper, China brand 6000kg site dumper, China brand 6000kg capacity three-way dumper, China brand 6.0 Ton mini dumper, China brand 6.0 ton small dumper
